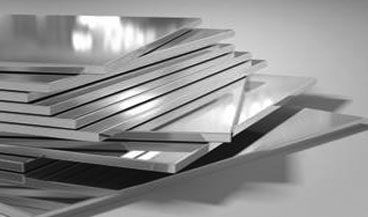

Aluminium 5052

Aluminium Alloy 5052

Aluminium 5052 has excellent corrosion resistance power and atmosphere pressure sustainability. Aluminium 5052 is a medium to high strength alloy with a strength slightly higher than 5251 and a medium to high fatigue strength. Aluminium 5052 alloy is one of the higher strength, non-heat-treatable alloys, which contains magnesium as its major alloying element, with small amounts of chromium, silicon, iron, copper, manganese and zinc. When annealed, Aluminium 5052 is stronger than the readily available 1100 and 3003 alloys, and stronger than most other 5xxx series alloys. Aluminium 5052 cannot be heat treated, but can be hot and cold worked. At Mallinath Metal, we ensure the quality of Aluminium 5052 keeping in mind client requirement.


CHEMICAL COMPOSITION OF ALUMINIUM ALLOY

Typical Properties of Aluminium 5052:

  • Light-weight
  • Low Maintenance
  • Corrosion Resistant
  • Hard Wearing
  • Chemical Composition :


    Chemical Element % Present
    Aluminium (Al) Balance
    Chromium (Cr) 0.15 - 0.35
    Copper (Cu) 0.1 max
    Magnesium (Mg) 2.2 - 2.8
    Manganese (Mn) 0.1 max
    Remainder Each 0.05 max
    Remainder Total 0.15 max
    Silicon + Iron 0.45 max
    Zinc 0.1 max

    Mechanical Properties:


    Property Value
    Tensile Strength 210 - 260 MPa
    Proof Stress 130 Min MPa
    Hardness Brinell 61 HB

    Physical Properties:


    Physical Property Value
    Density 2.68 g/cm³
    Melting Point 605 °C
    Thermal Expansion 23.7 x10^-6 /K
    Modulus of Elasticity 70 GPa
    Thermal Conductivity 138 W/m.K
    Electrical Resistivity 0.0495 x10^-6 Ω .m
