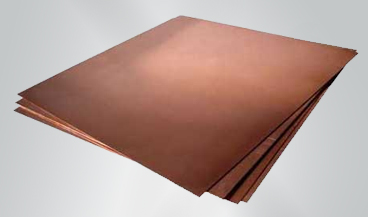

Aluminium Bronze
Mallinath Metal provides a wide range of Aluminium Bronze products. It is manufactured with utmost care of quality of raw materials and standards kept in considerations. We provide a total quality check of our materials before the customer receives our products. We also provide bulk quantity of Aluminum Bronze with quality kept in mind and at the best economical rates.
Aluminum Bronze alloys are utilized for their combination of high quality and amazing corrosion and wear resistance. C95400 Aluminum Bronze is a prominent cast Aluminum Bronze with high-quality properties and superb imperviousness to wear and erosion.
Applications of Aluminium Bronze:
Chemical Composition :
| Component | Wt. % |
| Al | 6 – 7.5 |
| Cu | 88.5 – 91.5 |
| Fe | 2 – 3 |
| Mn | Max 0.1 |
| Other | Max 0.05 |
| Pb | Max 0.01 |
| Sn | 0.02 – 0.5 |
| Zn | Max 0.05 |
Physical Properties :
| Properties | Metric | Imperial |
|---|---|---|
| Density | 7.65 g/cc | 0.276 lb/in³ |
| Melting point | 1041°C | 1905°C |
Mechanical Properties :
| Properties | Metric | Imperial |
|---|---|---|
| Hardness, Rockwell B | 89 | 89 |
| Tensile strength | 605 MPa | 87700 psi |
| Yield strength | 305 MPa | 44200 psi |
| Elongation at break ( in 50 mm, 15% reduction in area) | 15% | 15% |
| Elastic modulus | 117 GPa | 17000 ksi |
| Poisson's ratio | 0.34 | 0.34 |
| Charpy impact (V-notch) | 25.0-40.0 J | 18.4-29.5 ft-lb |
| Izod impact | 43.0-47.0 J | 31.7-34.7 ft-lb |
| Fatigue strength (@# of cycles 1.00e+8, reverse bending) | 200 MPa | 29000 psi |
| Machinability (based on 100 machinability for UNS C360000) | 50 | 50 |
| Shear modulus | 44 GPa | 6380 ksi |
