Boiler Quality Plate

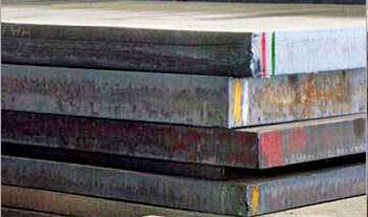

Boiler quality plate

Mallinath Metal are engaged in manufacturing and supplying Boiler Quality Plate, which are in always having a dynamic demand in the market. Fabricated using best of raw materials, procured from well known vendors, the Boiler Quality Plate, we offer are high in quality and competent in performance products. Boiler Quality Plate are available in different dimensions an sizes according to the client's requirements. They are used in various industries like, Oil and Gas, Chemical, Ship building, etc.
The Boiler Quality Plate are generally utilized as a part of fabrication of boilers in businesses. These hot moved steel plates are made accessible in assortment of evaluations and thickness and are produced to a predominant quality, pondered to hold out the interior weight in boilers and valves

Applications of Boiler Quality Plate:

  • Petrochemical manufacturing
  • Boilers, pressure vessels, gas turbines manufacturing
  • Heat exchangers, spheres, compressors and storage tanks manufacturing
  • Manufacturing of skid mounted equipment designed for the oil and gas industry

  • Grades of Boiler Quality Plate:

  • SA 516 Grade 60; SA 516 Grade 70
  • Chemical Composition :

     Element  Thickness  Composition (%)
     Carbon (max)  12.5 mm and under  0.27
       over 12.5 to 50 mm  0.28
       over 50 to 100 mm  0.30
       over 100 mm  0.31
     Manganese    0.85 - 1.20
     Phosphorus (max)    0.025
     Sulphur (max)    0.025
     Silicon    0.15 - 0.40
