Aluminium 6082 | Aluminium He30

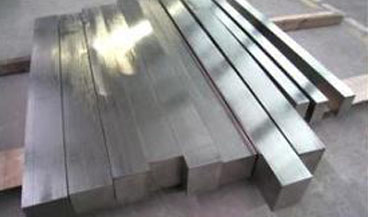

Aluminium alloy 6082

Mallinath Metal provides Aluminium 6082 | Aluminium He30 as a medium strength alloy with excellent corrosion resistance. It has the highest strength of the 6000 series alloys. Aluminium 6082 | Aluminium He30 is known as a structural alloy. Within it the addition of a large amount of manganese controls the grain structure which in turn results in a stronger alloy. It is difficult to produce thin walled, complicated extrusion shapes in Aluminium 6082 | Aluminium He30. The extruded surface finish is not as smooth as other similar strength alloys in the 6000 series.
We fulfill our customers with our best and one of a kind scope of Aluminium 6082 | Aluminium He30. Offered products are investigated as far as quality in order to convey a deformity unfenced.


CHEMICAL COMPOSITION OF ALUMINIUM ALLOY

Applications of Aluminium 6082 | Aluminium He30 :

  • Highly stressed applications
  • Trusses
  • Bridges
  • Cranes
  • Transport applications
  • Chemical Composition :


    Chemical Element % Present
    Aluminium (Al) 95.2 to 98.3%
    Chromium (Cr) 0.25% max
    Copper (Cu) 0.1% max
    Iron (Fe) 0.5% max
    Magnesium (Mg) 0.6 to 1.2%
    Manganese (Mn) 0.4% to 1.0%
    Silicon (Si) 0.7 to 1.3%
    Titanium (Ti) 0.1% max
    Zinc (Zn) 0.2% max
    Residuals 0.15% max

    Mechanical Properties:


    Property Value
    Proof Stress 85 Max MPa
    Tensile Strength 150 Max MPa
    Hardness Brinell 40 HB

    Physical Properties:


    Property Value
    Density 2700 kg/m3
    Melting Point 555°C
    Modulus of Elasticity 70 GPa
    Electrical Resistivity 0.038x10-6 Ω.m
    Thermal Conductivity 180 W/m.K
    Thermal Expansion 24x10-6 /K
